| Detector type | Vanadium Oxide Uncooled Focal Plane Detector | Resolution | 256 x 192 |
| Temperature range | -15℃~150℃ / 50℃~550℃ | Equivalent Noise | ≤50mK@25℃, F#1.0 |
| Accuracy | ±3℃ or ±3% of reading | Dots,lines,frames | 9 |
| Frame rate | ≤25Hz | Environment Variable Correction | Temperature, distance, emissivity |
| Camera | 3.2mm | Functionality | Point,line and frame maximum and minimum temperatures |
| Field of view | 56° * 42° | Focusing | Focus-free |
| Lens Exterior | Lens Blue Ring | Detector type | Vanadium Oxide Uncooled Focal Plane Detector |
| Platette | Supports 7 color palettes including black hot, white hot, iron red, rainbow, etc. | Forms of storage | 32G TF Card |

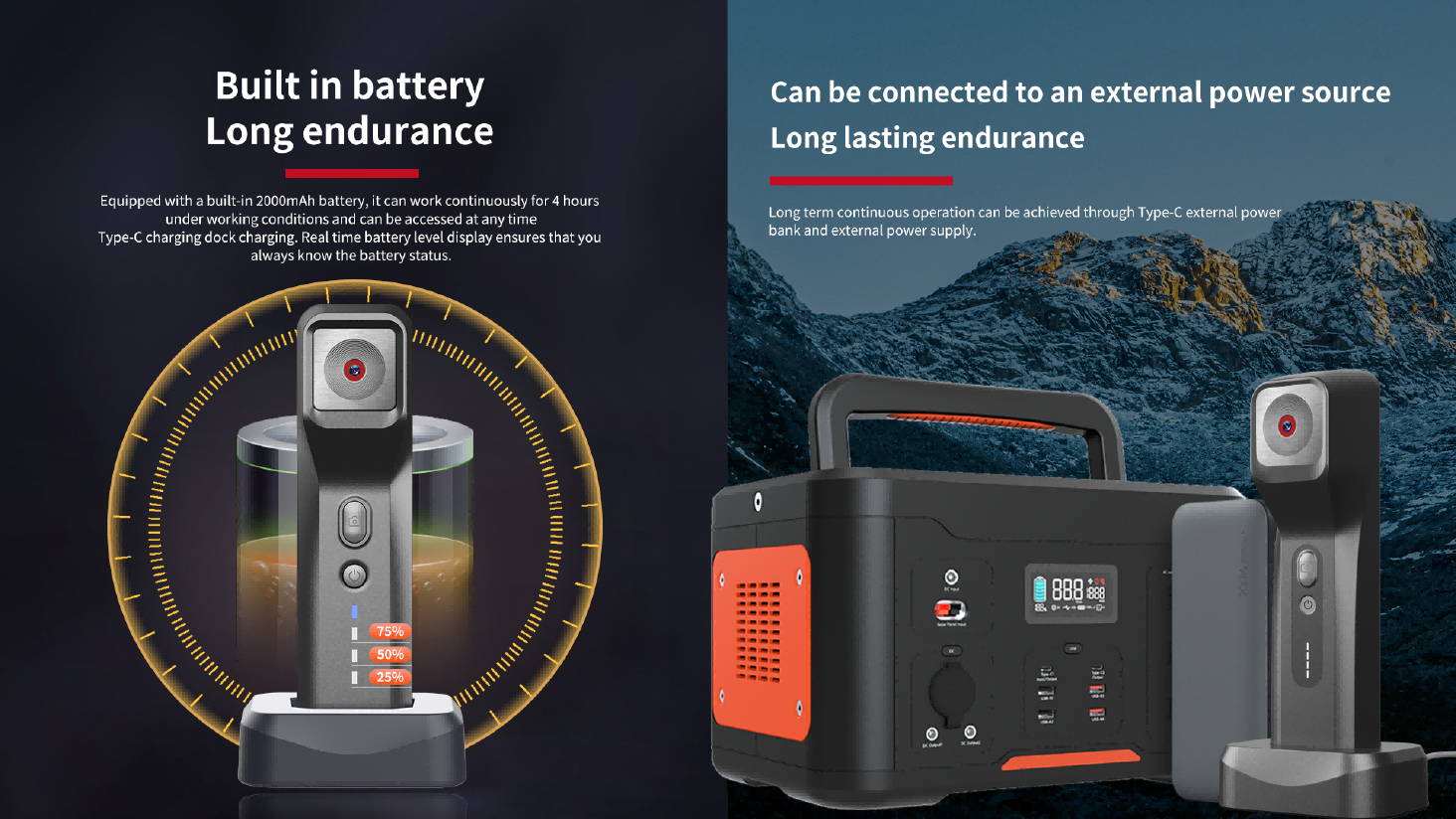

| Power supply | Battery powered / Type-c | Alarm function | Full screen temperature alarm, center temperature alarm, high and low temperature hot-spot tracking |
| Power wastage | ≤1.5W | Protection level | IP66 |
| Working temperatures | Themal imaging: -40℃~80℃ /Industry: -10℃~75℃ | Storage temperature | -45℃~85℃ |
| Sizes | 145x35x33mm | Weights | 144g |
