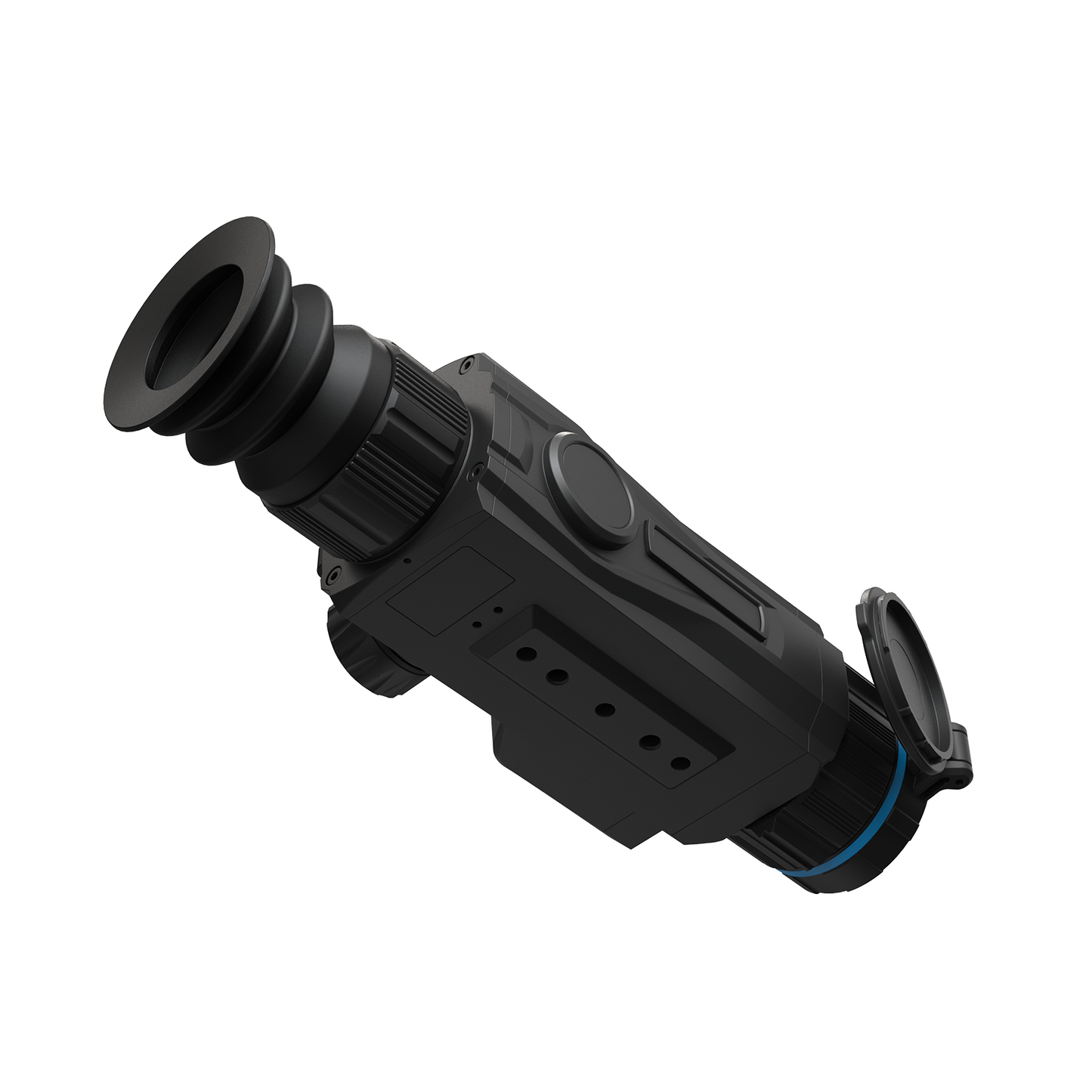

The Orion 25 sets a new standard in thermal optics with its 25mm adjustable focus lens, delivering an exceptional 1,500-meter detection range—perfect for identifying targets from birds to large game with unmatched clarity. Under AI super-resolution, it can achieve a 320*240 sensor display effect, achieving image quality comparable to larger-format thermal sensors.
Key Features
Dual Battery System: 8+ hours of continuous operation with hot-swappable external power for 24/7 reliability.
Built-in Laser Rangefinder: Measures distances up to 700m (±1m accuracy) with ballistic trajectory calculation.
Team Map Sharing: Real-time GPS coordination via HuntIR App (iOS/Android) for tactical synergy.
Recoil-Activated Recording: Captures 15s shot process footage, ensuring no critical moment is missed.
IP67 Protection: Performs flawlessly in rain, dust, or sub-zero conditions (-20°C to +50°C).
Its 0.39" AMOLED screen (1024×768) offers eye-fatigue-free observation, while the 3-in-1 expandability (red dot/white light sight compatibility) adapts to any scenario. Weighing just 580g in a rugged magnesium alloy body, it’s the ultimate blend of portability and performance.
Engineered for hunters and tacticians who demand precision, durability, and smart connectivity, the Orion 25 redefines what a compact thermal sight can achieve.
Specifications
| Thermal Module |
Orion S2 |
| Image Sensor |
Uncooled Focal Plane Arrays |
| Max.Resolution |
256x192
|
| Frame Rate |
50Hz |
| Pixel Interval |
12 µm |
| NETD |
Less than 20mK (25℃,F=1.0) |
| Lens(Focal Length) |
25mm,F1.0 |
| Detection Range |
1500m
|
| Field of View(H ×Ⅴ), Degrees/m@100m |
7.0°×5.3° /12.2m×9.3m |
| Min.Focusing Distance |
2m
|
| Magnification |
3.5x-14x(4x) |
| Image Display |
| Display |
1024x768, 0.39 inch, OLED |
| Brightness Adjustment |
Yes
|
| Palettes |
Black Hot, White Hot, Red Hot, Fusion |
| FPC(Flat Field Correction) Mode |
Auto, Manual, External Correction |
| Exit Pupil |
10mm
|
| Eye Relief |
48mm
|
| Diopter(Range) |
-5D to 5D |
| Tone Adjustment |
Cold, Warm
|
| System |
| Record Video |
On-board Video Recording
|
| Capture Snapshot |
YES |
| Hotspot |
YES |
| Standby Mode |
YES |
| Storage |
Built-in EMMC(32 GB) |
| PIP |
YES |
| Hot Track |
YES |
| Distance Measurement |
YES |
| Audio Recording |
YES |
| Recoil-activation Recording |
YES |
| Coach Mode Recording |
YES |
| Max.Recoil |
1000g/0.4ms (6000J)
|
| Zeroing Profiles |
6 |
| WiFi On-board |
YES
|
| Power Supply |
| Battery Type |
Replaceable and Rechargeable 18500 Li-ion Battery Pack
|
| Battery Operating Time |
≥8h (25℃,with hotspot off) |
| Type-C Power Supply |
5V DC,2A Supports External Power Supply
|
| General |
| Protection Level |
IP67
|
| Weight |
≤620g |
| Dimension |
216.0 mm×76.0 mm×46.0 mm
|
| Working Temperature |
-20℃ to +50℃ |
| Humidity collection |
YES
|
| Laser Rangefinder |
| Safety Class for Laser |
Class 1
|
| Wavelength |
905nm
|
| Max.Measuring Range |
700m
|
| Measurement Accuracy |
±1m
|
| Min.Measuring Range |
10m
|
| Ballistic Correction |
YES
|
