Currently in the pre-sale stage, the product will be shipped after 2025-10-20

Orion Series Thermal Scopes have an elegant appearance, excellent performance, and practical functions.
It also has a streamlined and tough body line, a unique logo design, a minimal rangefinder module, an elegant knob button design, dual battery design(4600mA), long working time and a slot that supports red dot sights.
In addition to its unique design, it also has a powerful AI chip that uses super-resolution technology to clearly capture targets.
Its automatic ballistic calculation system makes long-range shooting simpler and more accurate.

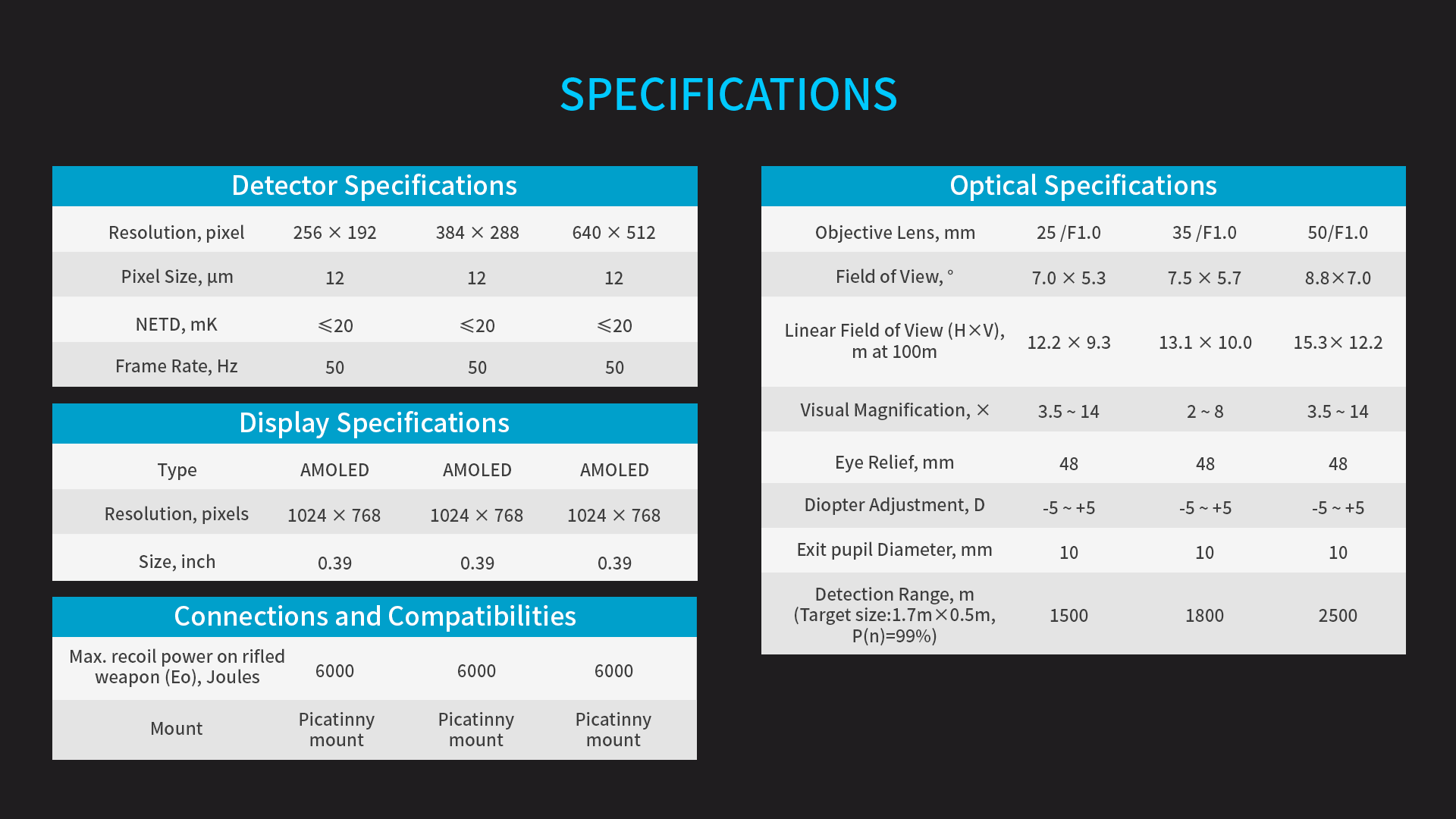

Specifications

Thermal Module	Orion X35
Image Sensor	Uncooled Focal Plane Arrays
Max.Resolution	384x288
Frame Rate	50Hz
Pixel Interval	12 µm
NETD	Less than 20mK (25℃,F=1.0)
Lens(Focal Length)	35mm,F1.0
Detection Range	1800m
Field of View(H ×Ⅴ), Degrees/m@100m	7.5°×5.7° /13.1m×10.0m
Min.Focusing Distance	2m
Magnification	3.5x-14x(4x)
Image Display
Display	1024x768, 0.39 inch, OLED
Brightness Adjustment	Yes
Palettes	Black Hot, White Hot, Red Hot, Fusion
FPC(Flat Field Correction) Mode	Auto, Manual, External Correction
Exit Pupil	10mm
Eye Relief	48mm
Diopter(Range)	-5D to 5D
Tone Adjustment	Cold, Warm
System
Record Video	On-board Video Recording
Capture Snapshot	YES
Hotspot	YES
Standby Mode	YES
Storage	Built-in EMMC(32 GB)
PIP	YES
Hot Track	YES
Distance Measurement	YES
Audio Recording	YES
Recoil-activation Recording	YES
Coach Mode Recording	YES
Max.Recoil	1000g/0.4ms （6000J）
Zeroing Profiles	6
WiFi On-board	YES

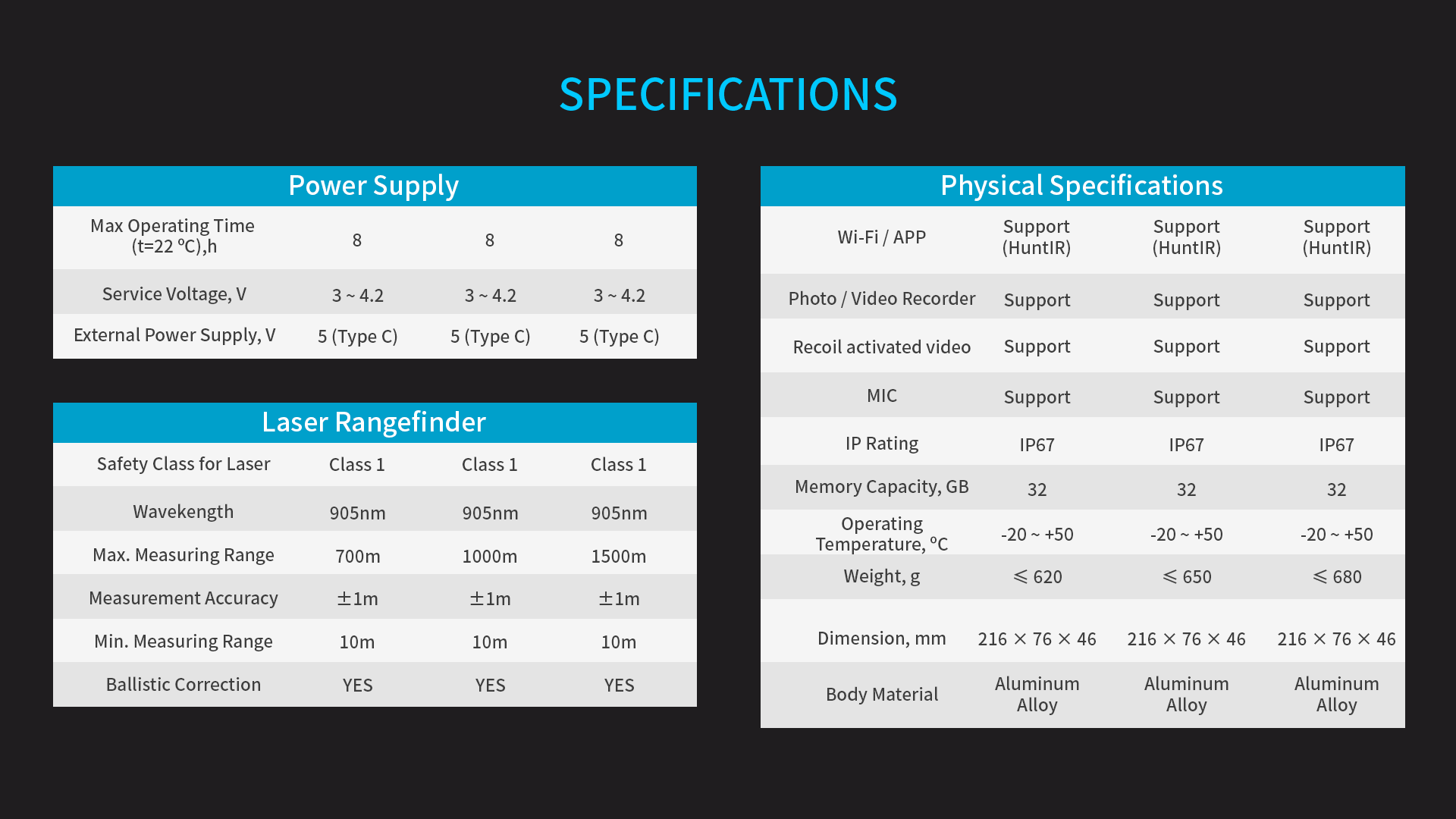

Power Supply
Battery Type	Replaceable and Rechargeable 18500 Li-ion Battery Pack
Battery Operating Time	≥8h (25℃,with hotspot off)
Type-C Power Supply	5V DC,2A Supports External Power Supply
General
Protection Level	IP67
Weight	≤650g
Dimension	216.0 mm×76.0 mm×46.0 mm
Working Temperature	-20℃ to +50℃
Humidity collection	YES
Laser Rangefinder
Safety Class for Laser	Class 1
Wavelength	905nm
Max.Measuring Range	1000m
Measurement Accuracy	±1m
Min.Measuring Range	10m
Ballistic Correction	YES
