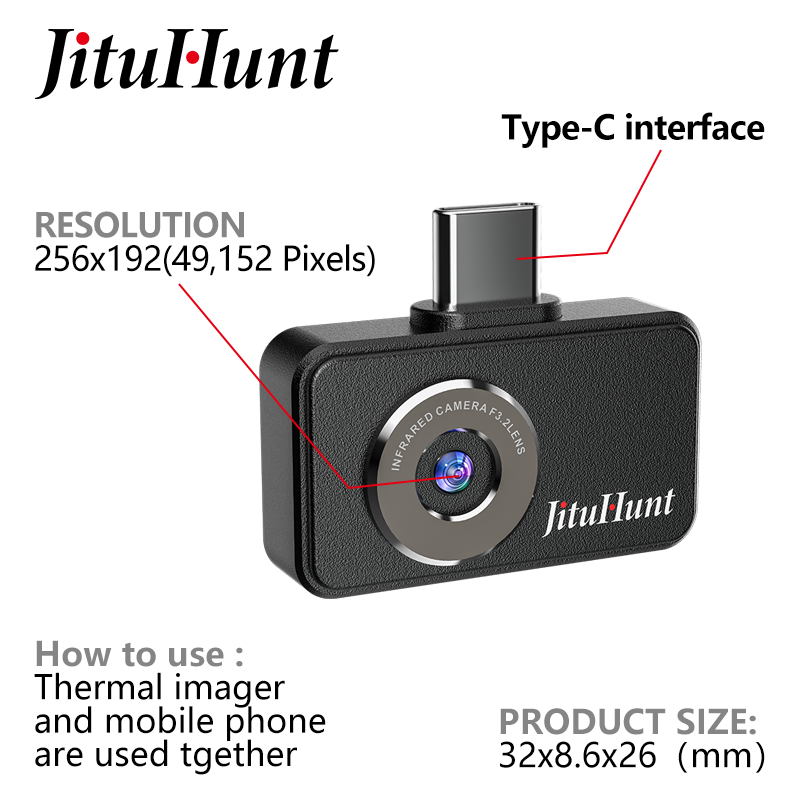

1 Adopt 256*192 high-resolution sensor, with 49152 temperature points, clear image quality.
2 25Hz sensor image refresh rate, no image lag even when you move the phone quickly.

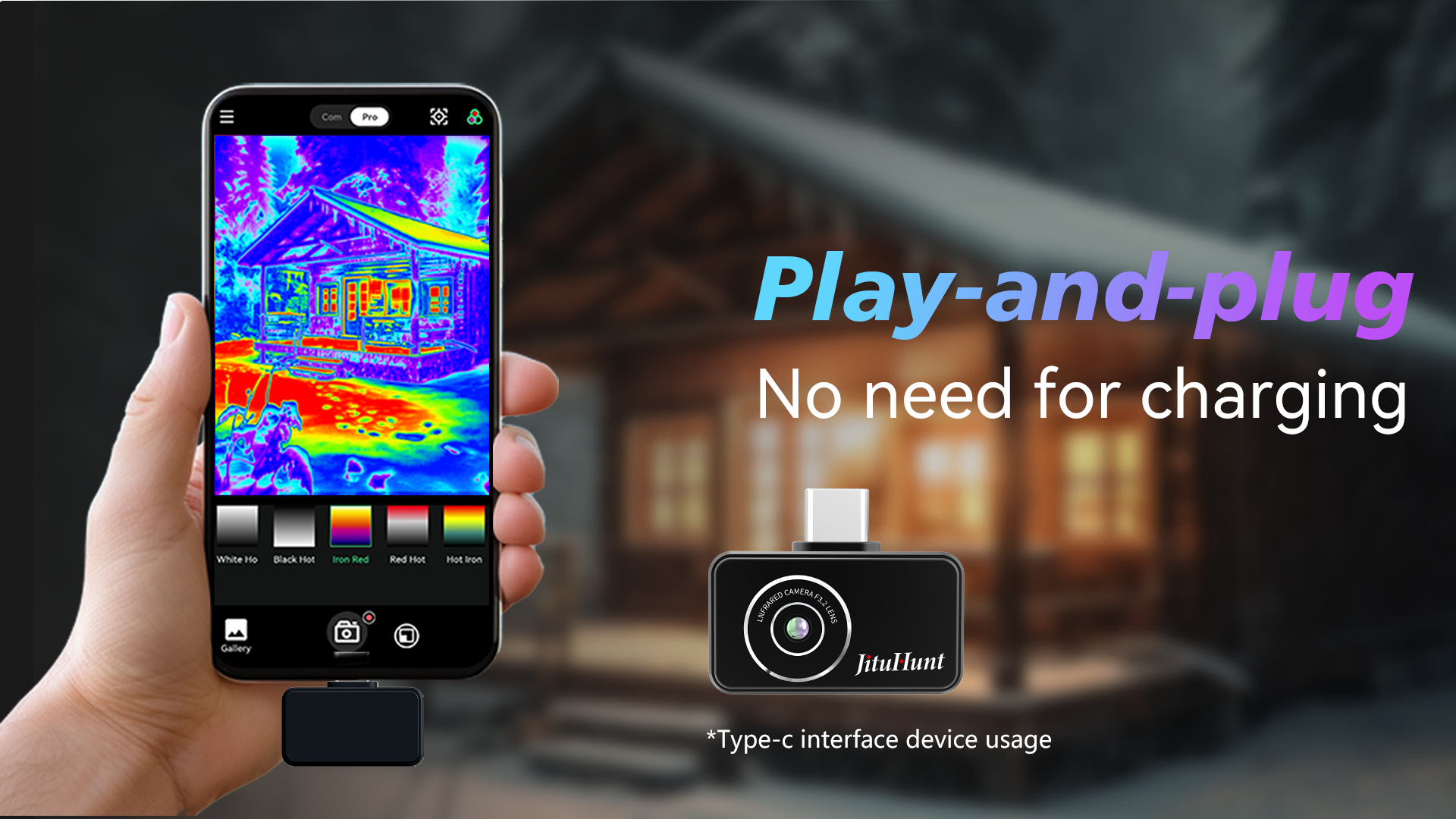

3 No charging Plug and Play, Power consumption less than 0.5W.

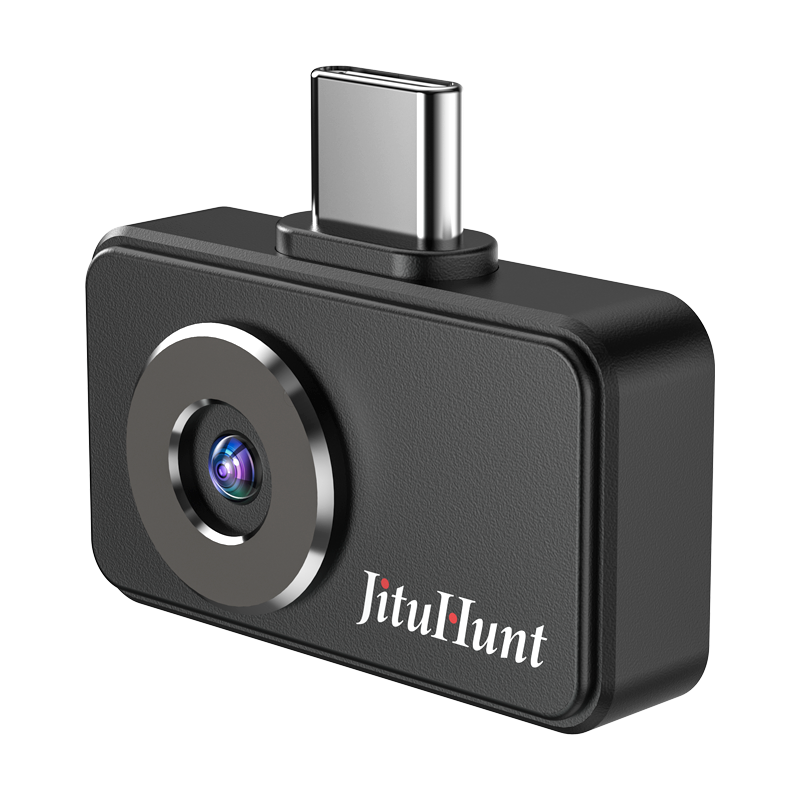

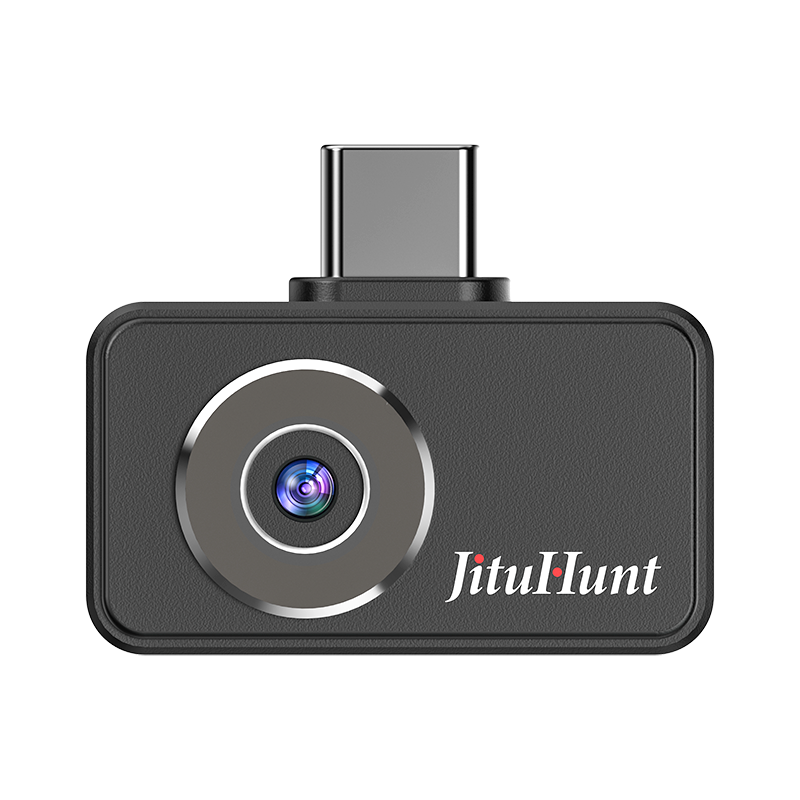

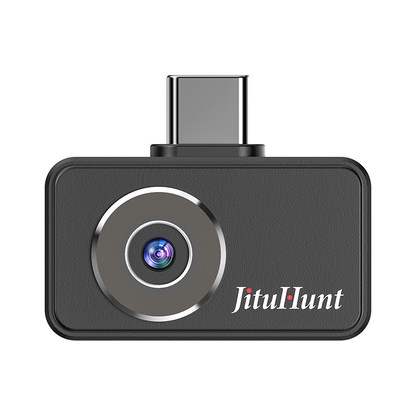

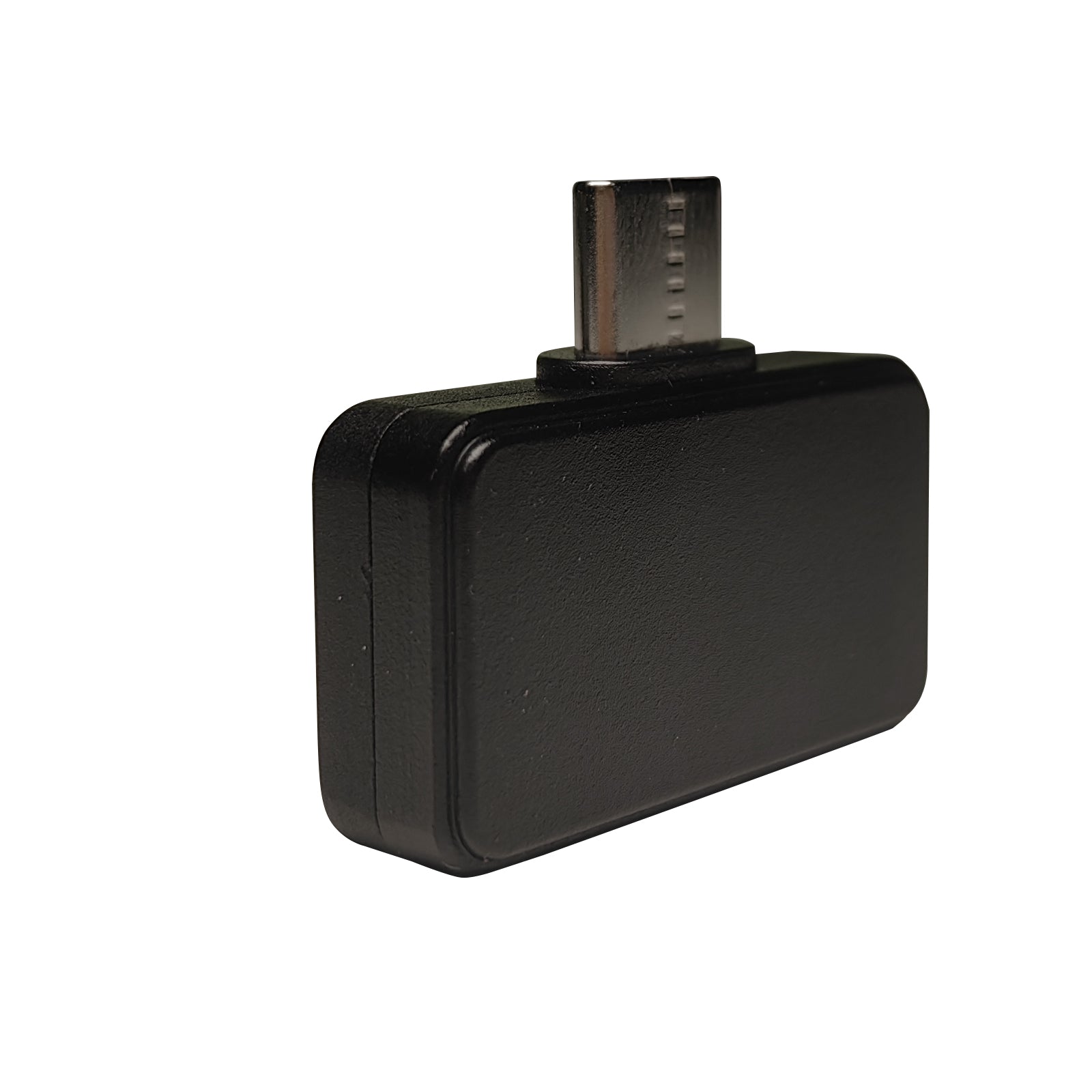

4 The Z5Mini size is only 35*26*85 (mm) and weighs only 10g, so it is very convenient to carry.

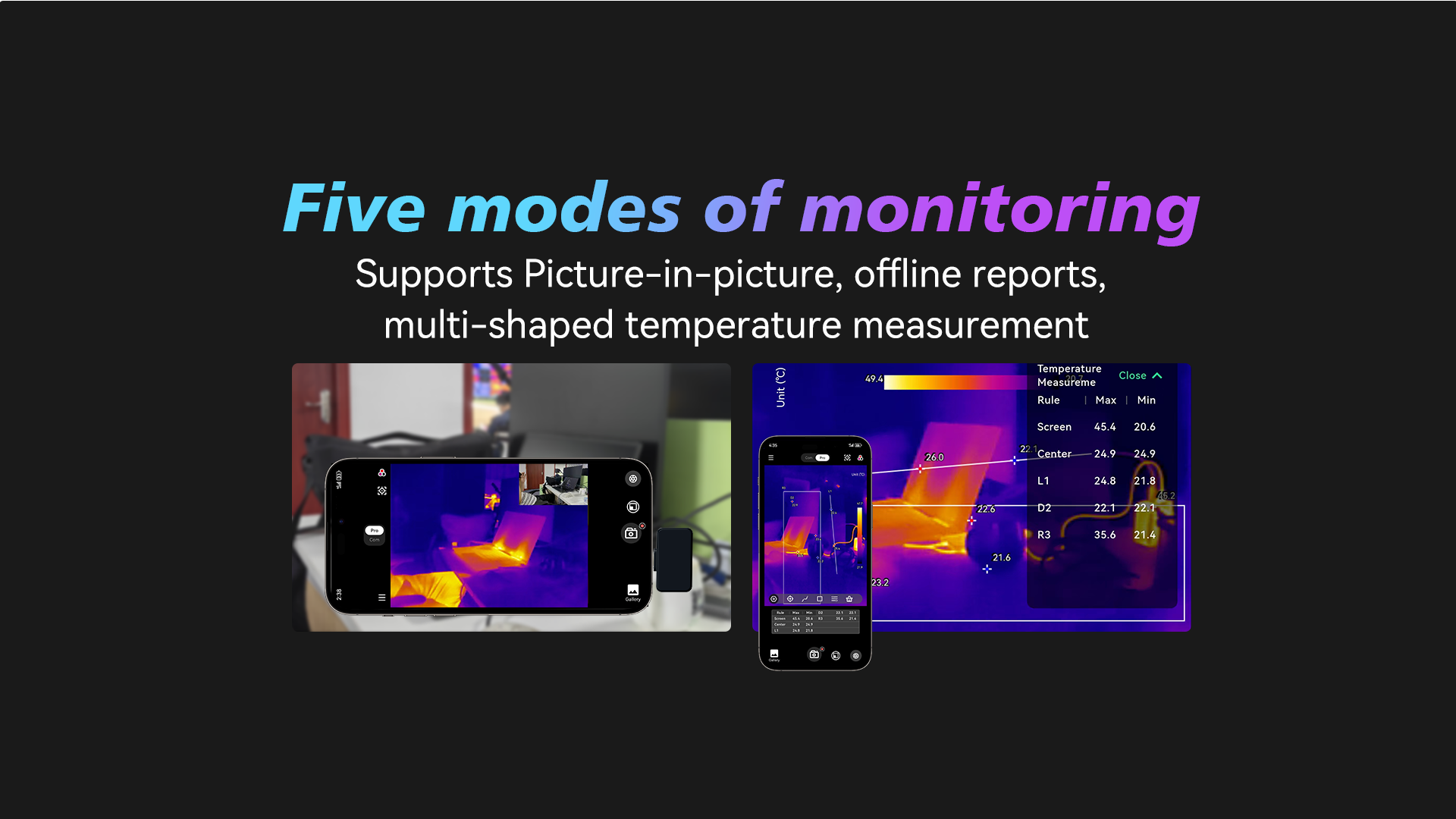

5 Five temperature Measurement Functions: High and low temperature alarm, PIP, Multiple palettes, Multi-shaped measurement Offline reporting.
6 Industrial temperature measurement, temperature measurement range can reach -15° to 550°, measurement accuracy up to +2 C or ±2%.
7 Field angle 56° x42°, The ultra-large field of view makes observation more convenient and eliminates danger.
8 Supports photo and video recording functions, share the fun of using it with your friends at any time.

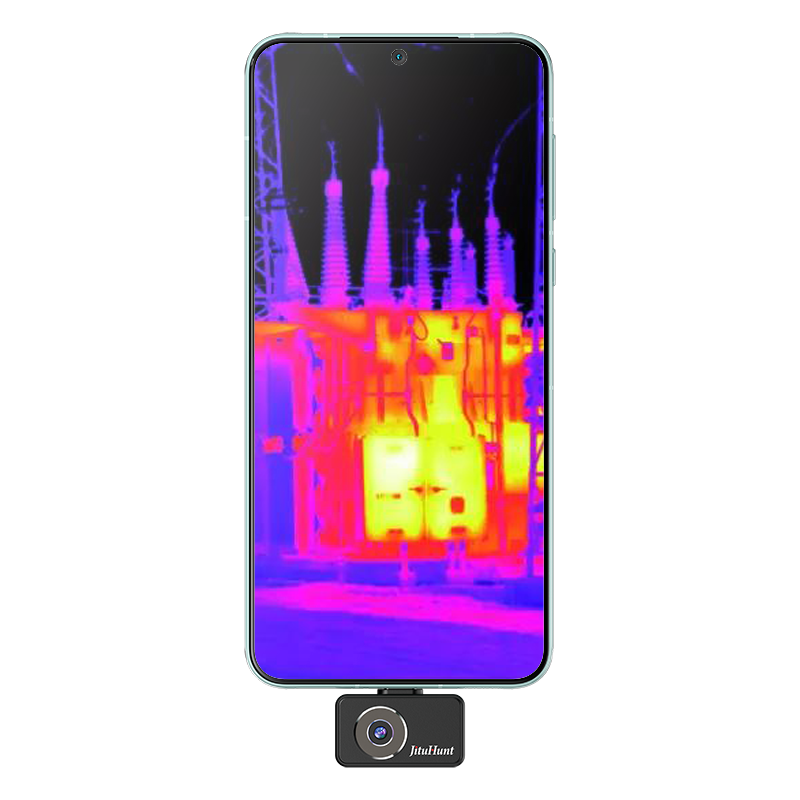

9 Wide range of applications: pet rescue, privacy protection, power system testing, air conditioning and floor heating testing, car maintenance, etc.
Specification
| Product Name
|
Plug-in thermal imager Z5Mini |
| Detector Type
|
Uncooled infrared focal plane detector |
| Resolution
|
256X192 |
| Cell Spacing
|
12um |
| Thermal sensitivity
|
≤50mK |
| Spectral range
|
8~14um |
| Performance |
| Frame frequency
|
≤25Hz |
| Power consumption
|
<0.5W |
| Operating temperature
|
-10°C~55°C |
| Storage temperature |
-45°℃~85C |
| Lens |
| Focal length
|
3.2mm |
| Aperture
|
F1.1 |
| FOV
|
56°X42° |
| Lens type
|
Non-thermalized fixed-focus lens |
| Temperature |
| Measurement range
|
-15°C~150°℃(L) & 50°℃~550°℃(H) |
| Accuracy
|
±3°C or ±3% of reading |
| Software Support |
| Measurement
|
Dots,Lines,Boxes (Max 9) |
| Environment Variables
|
Emissivity, distance, temperature |
| Color
|
10 colors in all |
| Temperature bar
|
Filtering of specified temperature ranges |
| Analysis
|
Photo Temperature Analysis |
| Systems
|
Support Android 6.0/Harmony 2.0 and above |
| Update
|
Online Updates |
| Shape |
| Sizes
|
35x25X9mm |
| Color
|
Grey |
| Weights
|
10.2g |
| Material
|
Aluminum |

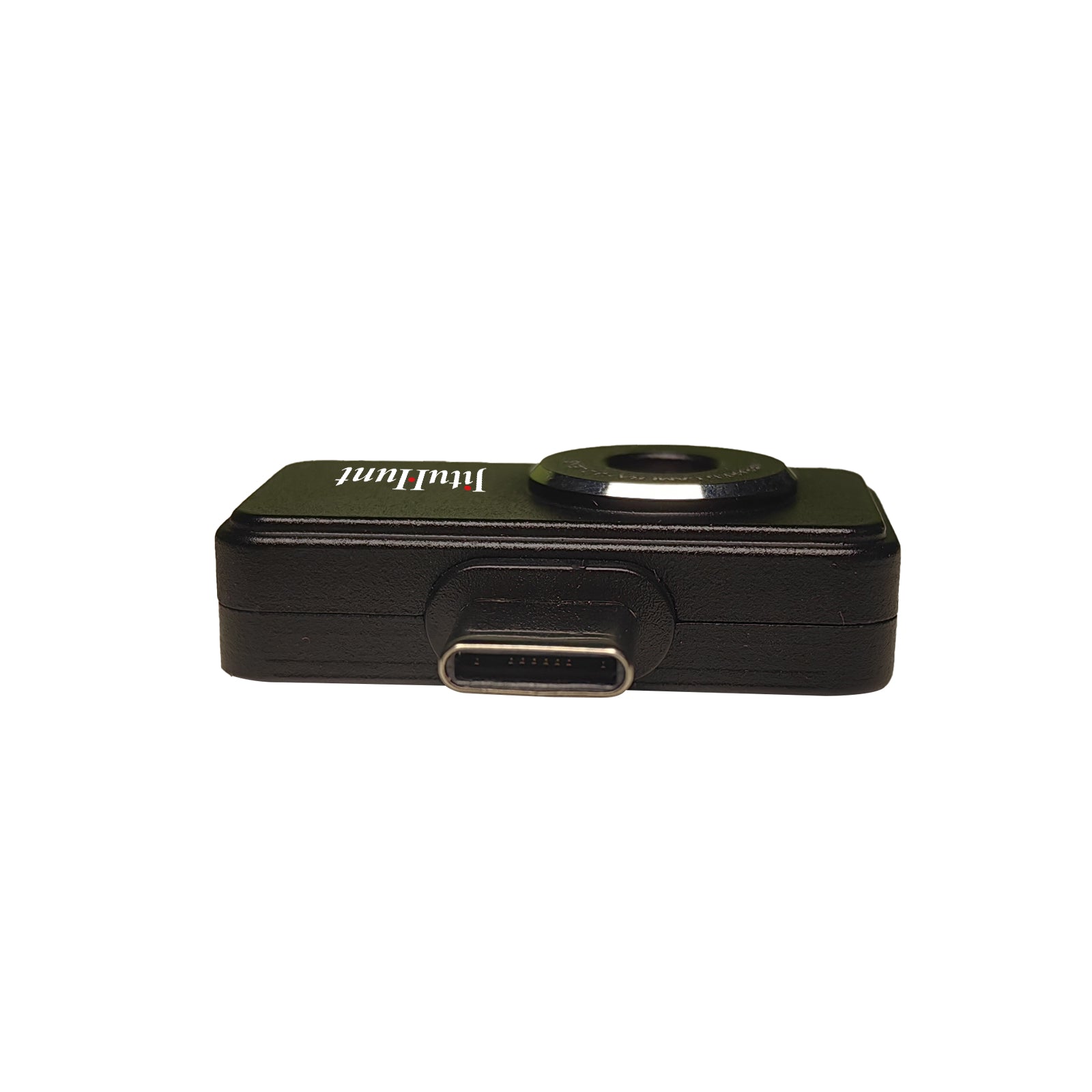

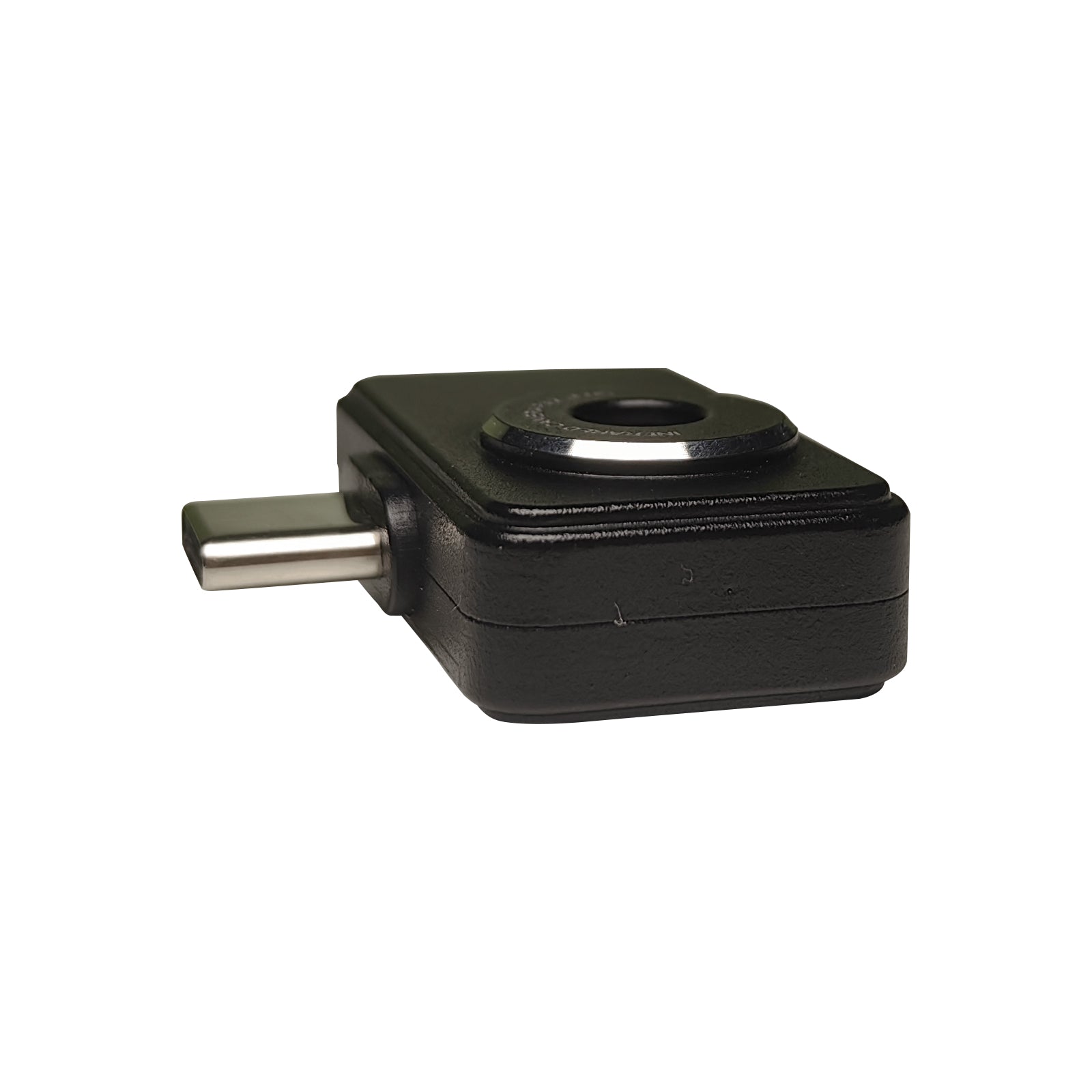

| Connector
|
Type -C |
