1. Device Description

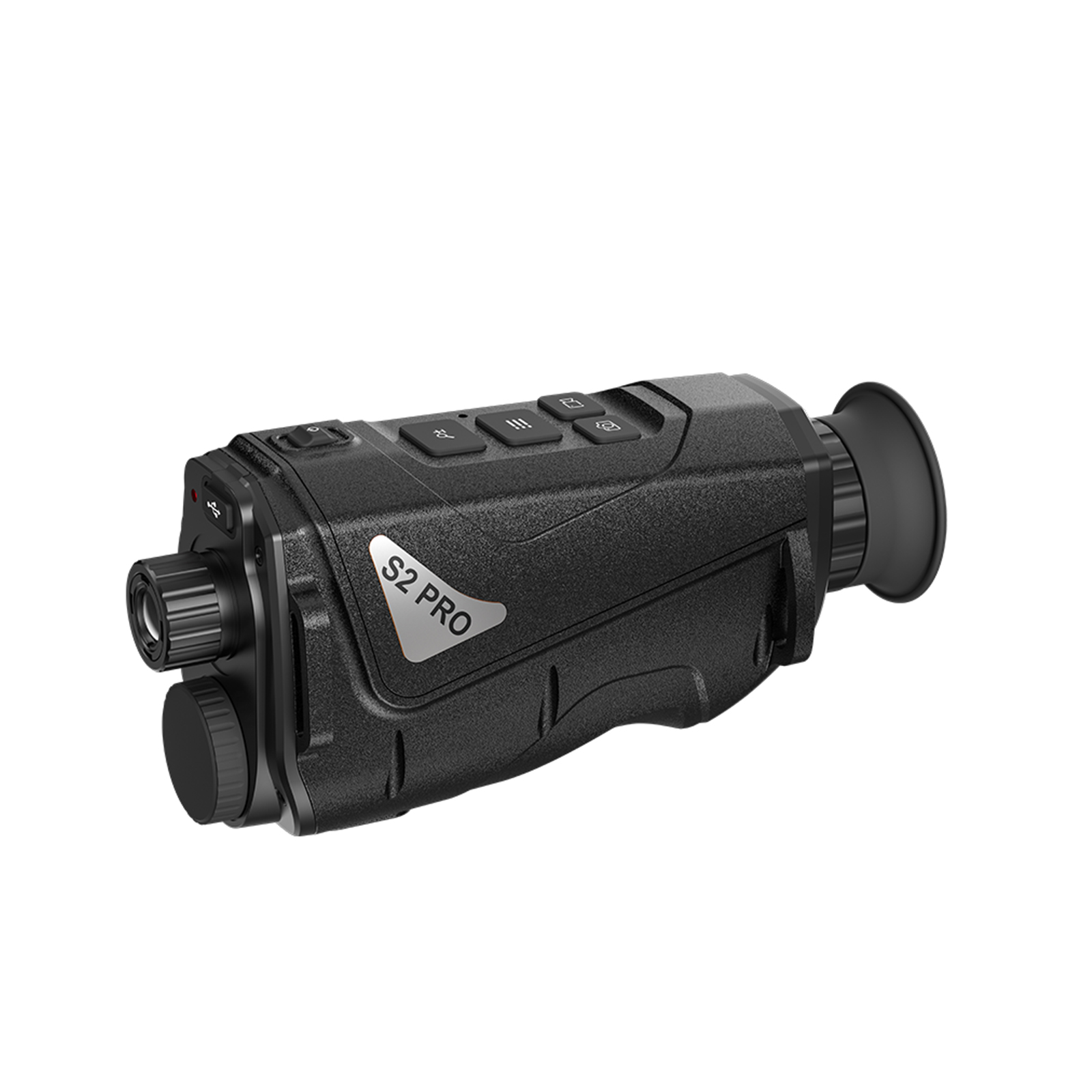

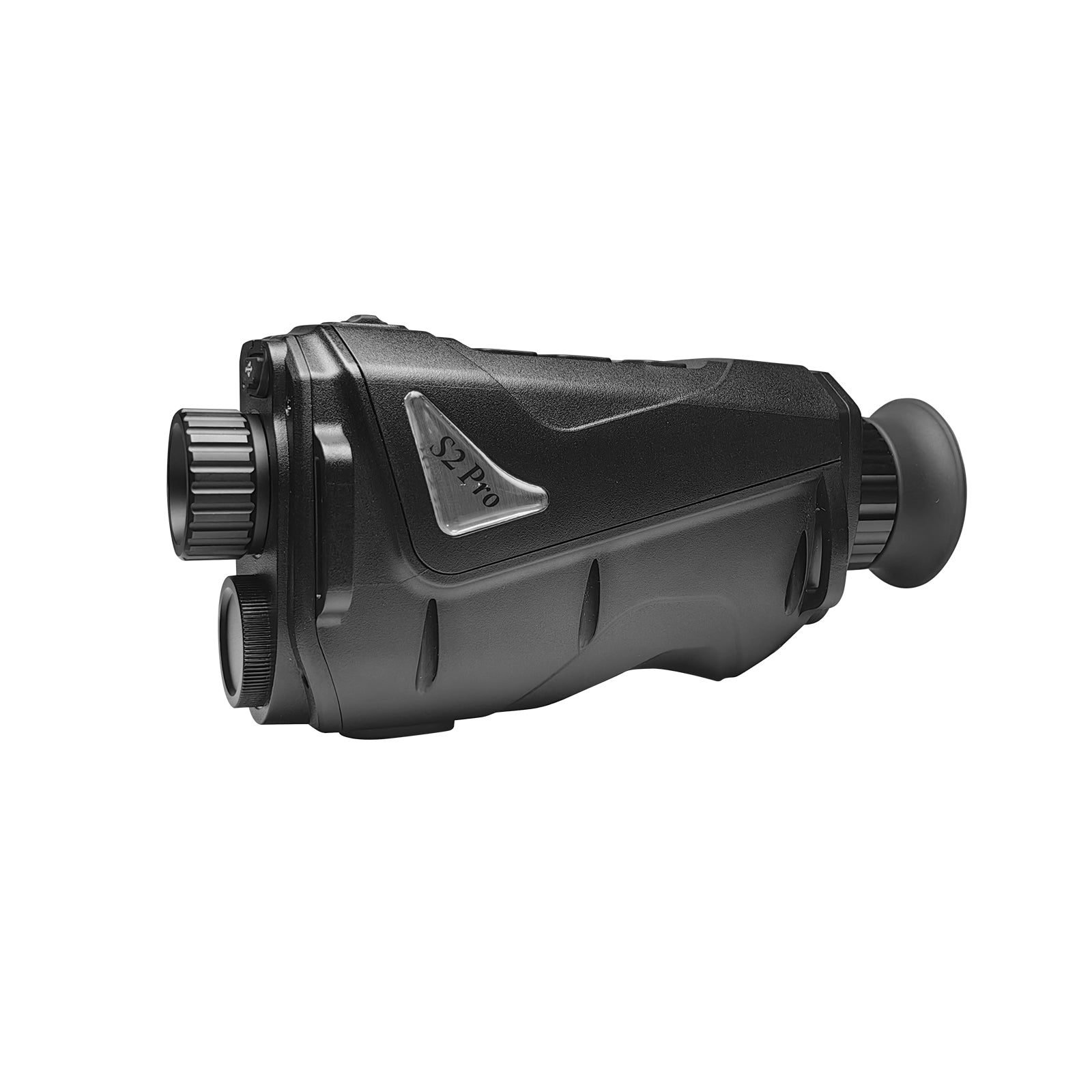

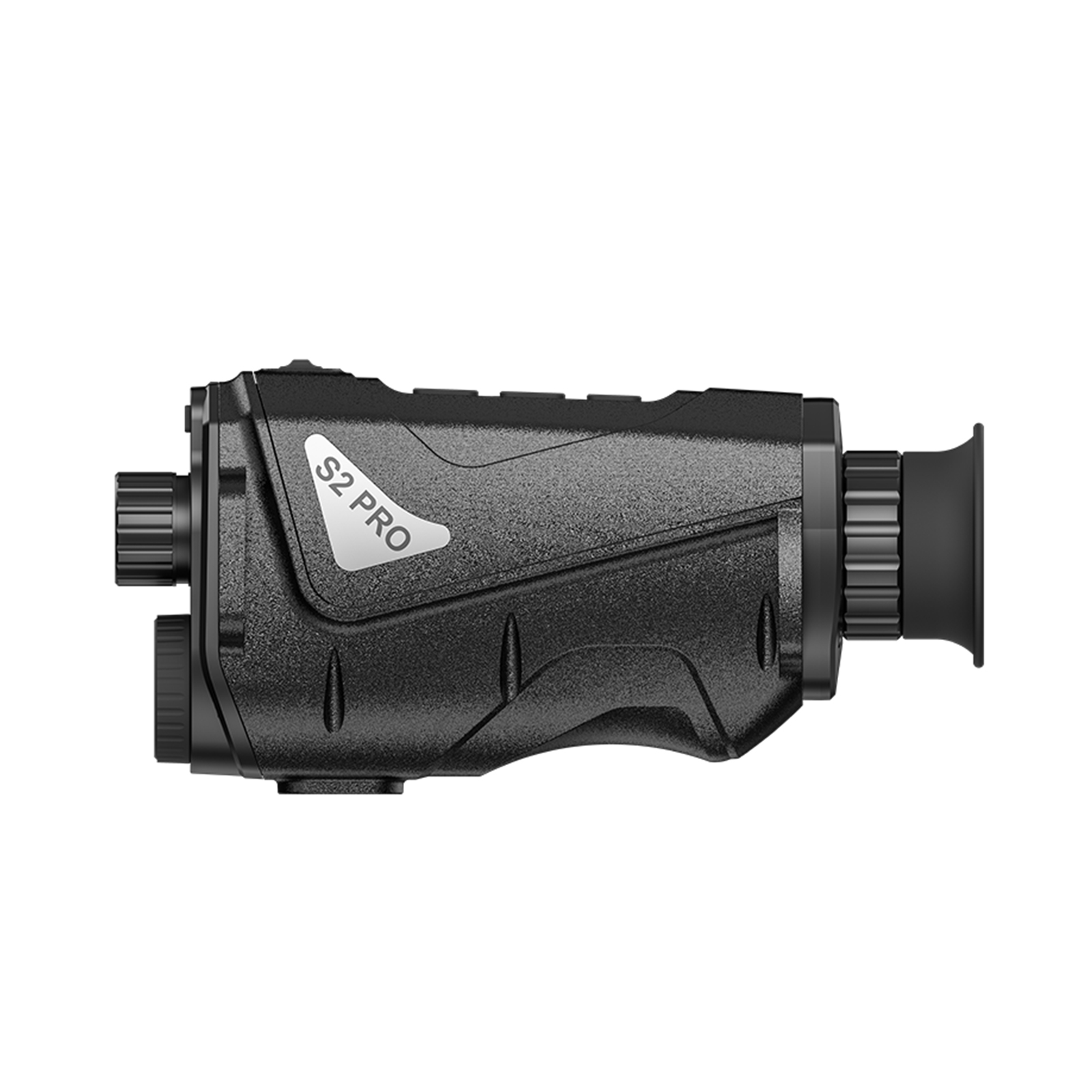

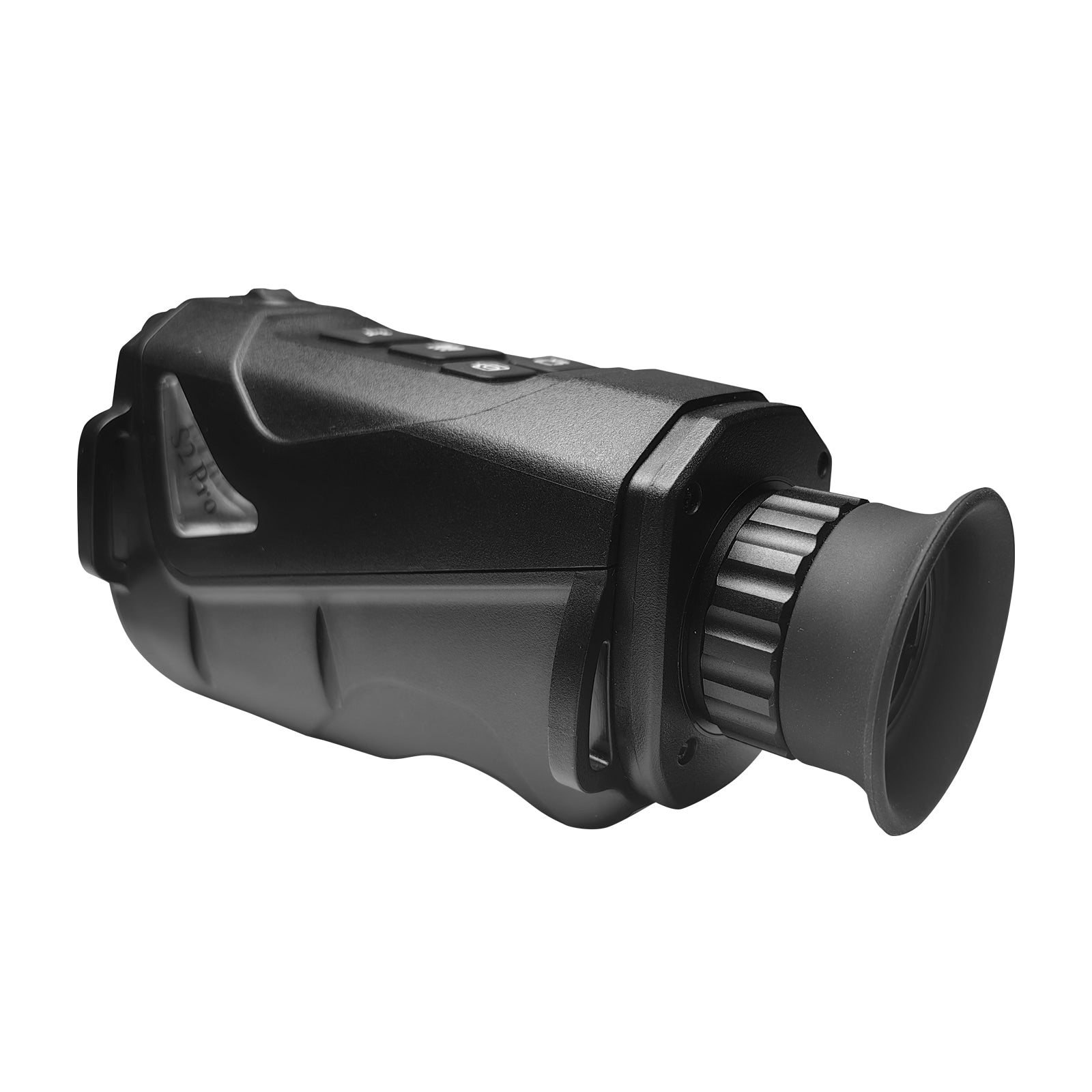

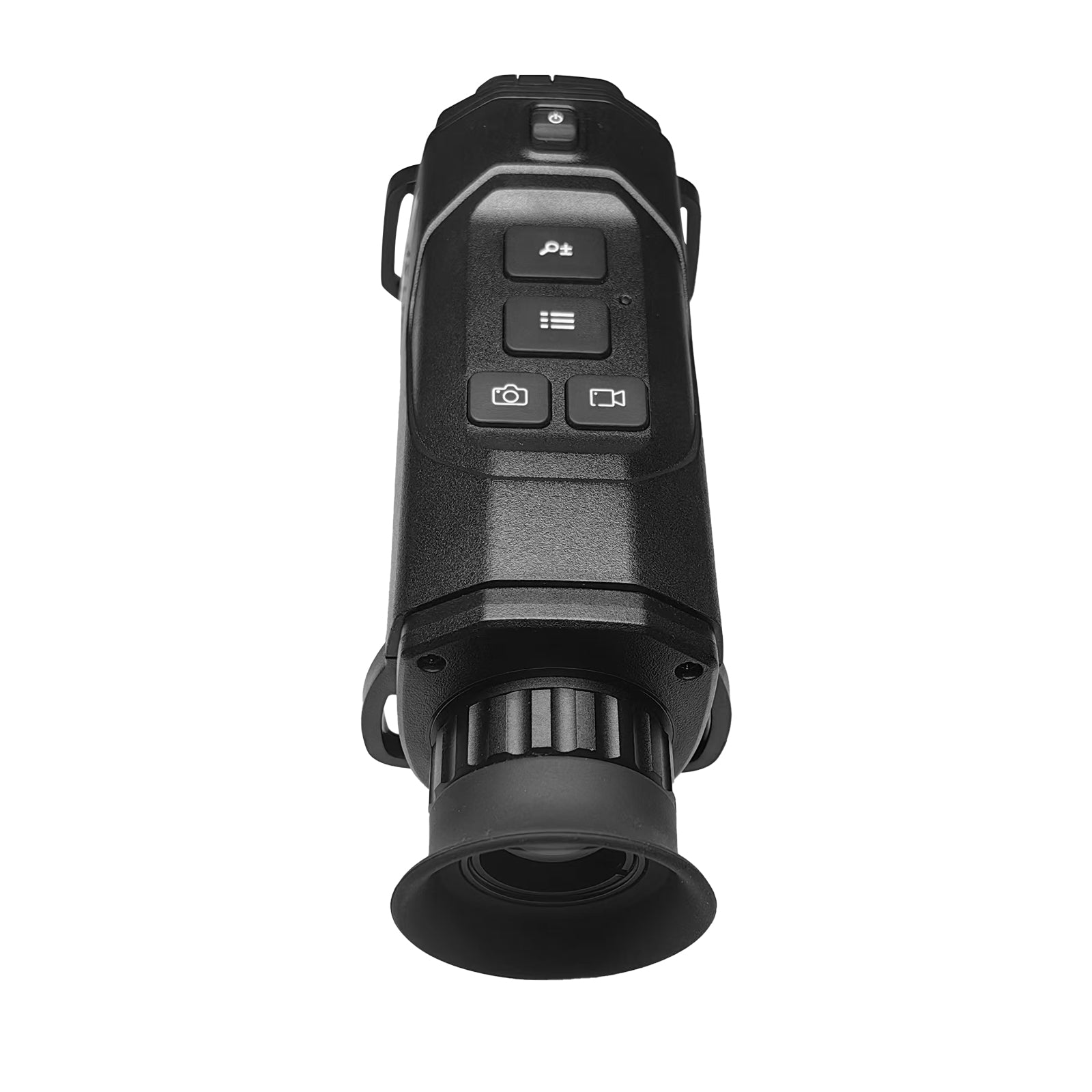

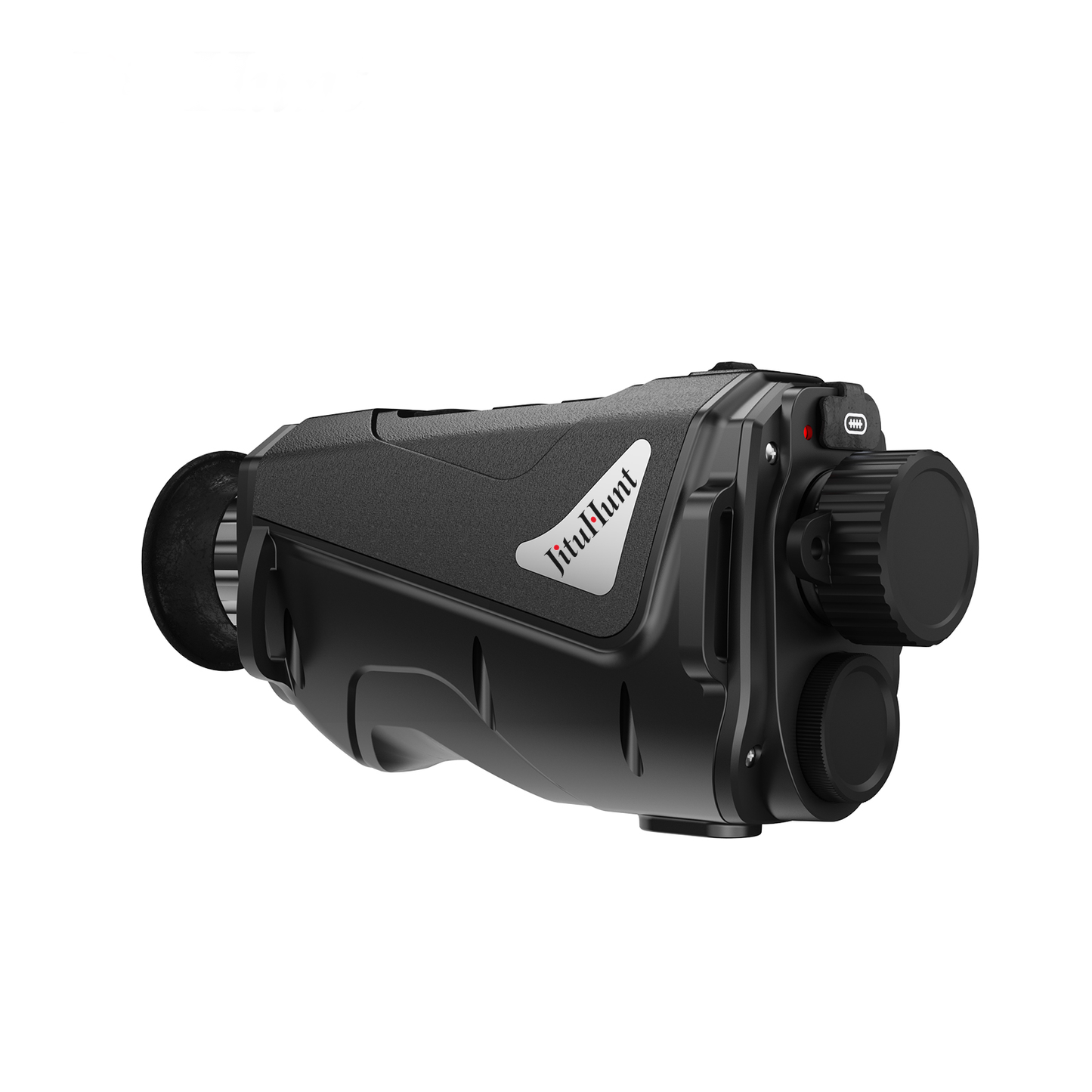

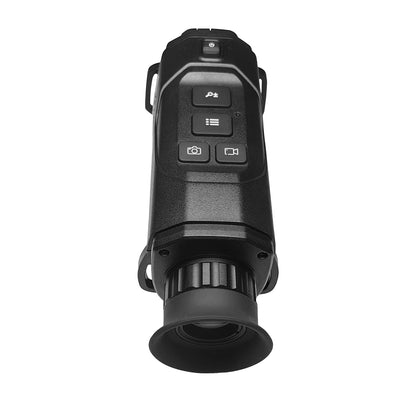

The handheld observation Thermal Imaging Monocular telescope is equipped with a 256×192 infrared detector, a 1.43-inch AMOLED display and a removable 18650 rechargeable battery, which can be replaced at any time and has a longer battery life.

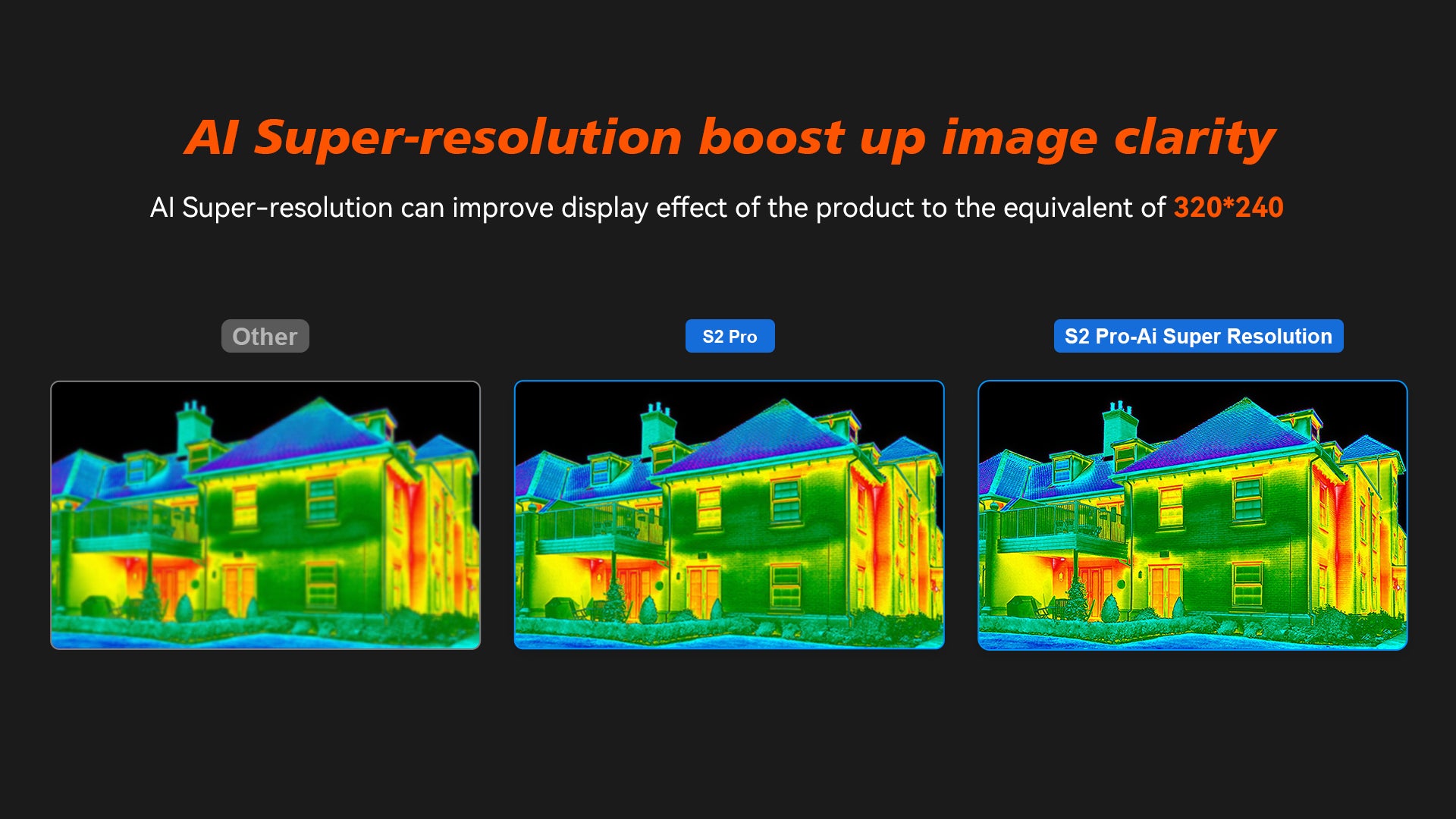

Use the latest generation SOC processor to support AI computing power. Although equipped with a 256*192 resolution sensor, it can achieve the display effect of a 320*240 resolution sensor, with lower overall power consumption and longer battery life.
The appearance structure is ergonomic, easier to hold with one hand, and can be put in a pocket for easy portability.
It supports observation, maximum temperature target tracking, Wi-Fi image transmission and other functions.
The monocular telescope is mainly used in outdoor search and rescue, bird watching, camping, hiking, tourism, hunting and other scenes.
2. Features
Adopt high-performance Al chip and image detal enhancement technology.
Support wireless hotspot/Station connection and mobile phone APP connection.
Built in 32GB memory module supports video recording and photo taking.

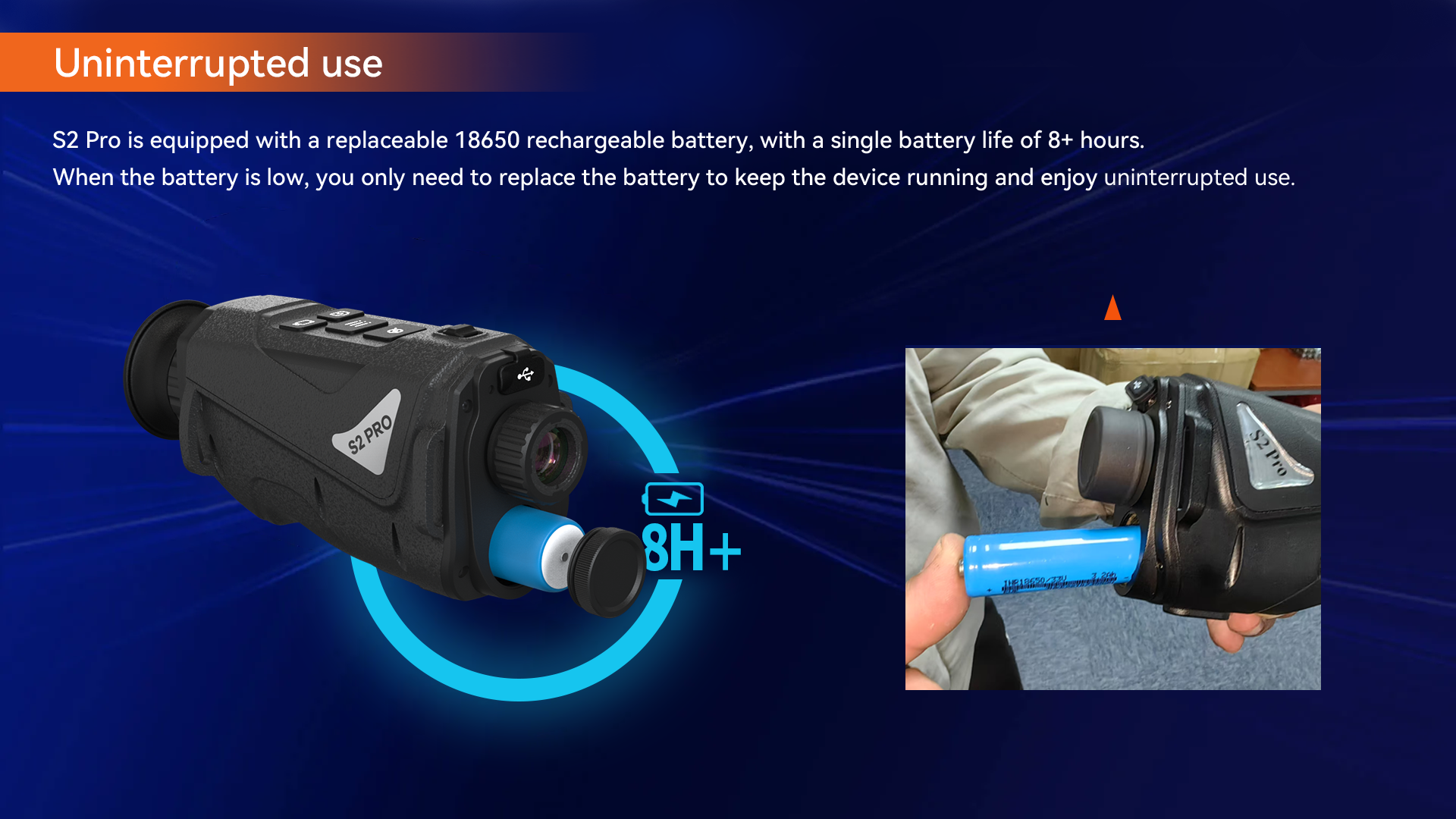

Replaceable and rechargeable 18650 battery, which can be used continuoustly for 8 hours after charging.
Support frmware update via USB flash drive and APP.
3. The main function
Hot Spot Tracking
Detect the highest temperature spot in the scene and mark it on display
Internet function
Support hotspots, add Thermal Imaging Monocular through mobile phone APP to realize functions such as capture, record, and parameter configuration.
Storage- Built-in storage (up to 32GB), supports recording, video recording and taking pictures.
Digital zoom- Support 1.0x, 2.0x, 4.0x, 8.0x.

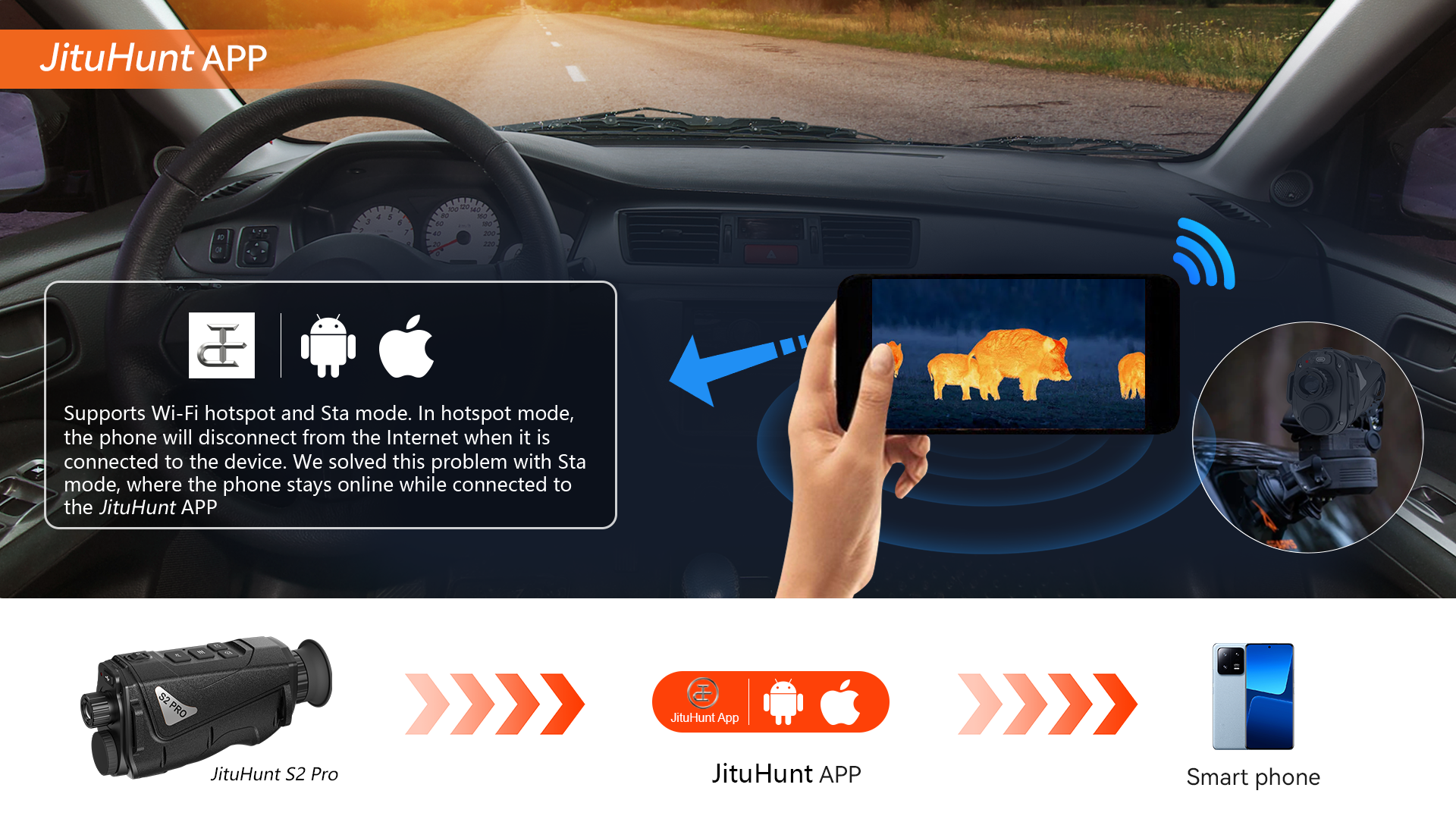

APP- A software that can obtain real-time video of the Thermal Imaging Monocular and control the Thermal Imaging Monocular.
Scene Mode- Normal mode, Outline mode, City mode, Forest mode, Rainforest mode, Bird watching mode.
Color Mode -Black hot, White hot, Red hot, Iron red hot , Green hot.
Data transmission (USB-C interface)
Supports data transmission, USB-C to HDMI output, external CVBS display.
Specifications
| Model
|
S2 PRO |
| Detector resolution
|
256x192 |
| Ai super resolution
|
320x240 |
| Pixel size
|
12um |
| NETD
|
≤40mk |
| Response band
|
8um~14um |
| Lens (focal length)
|

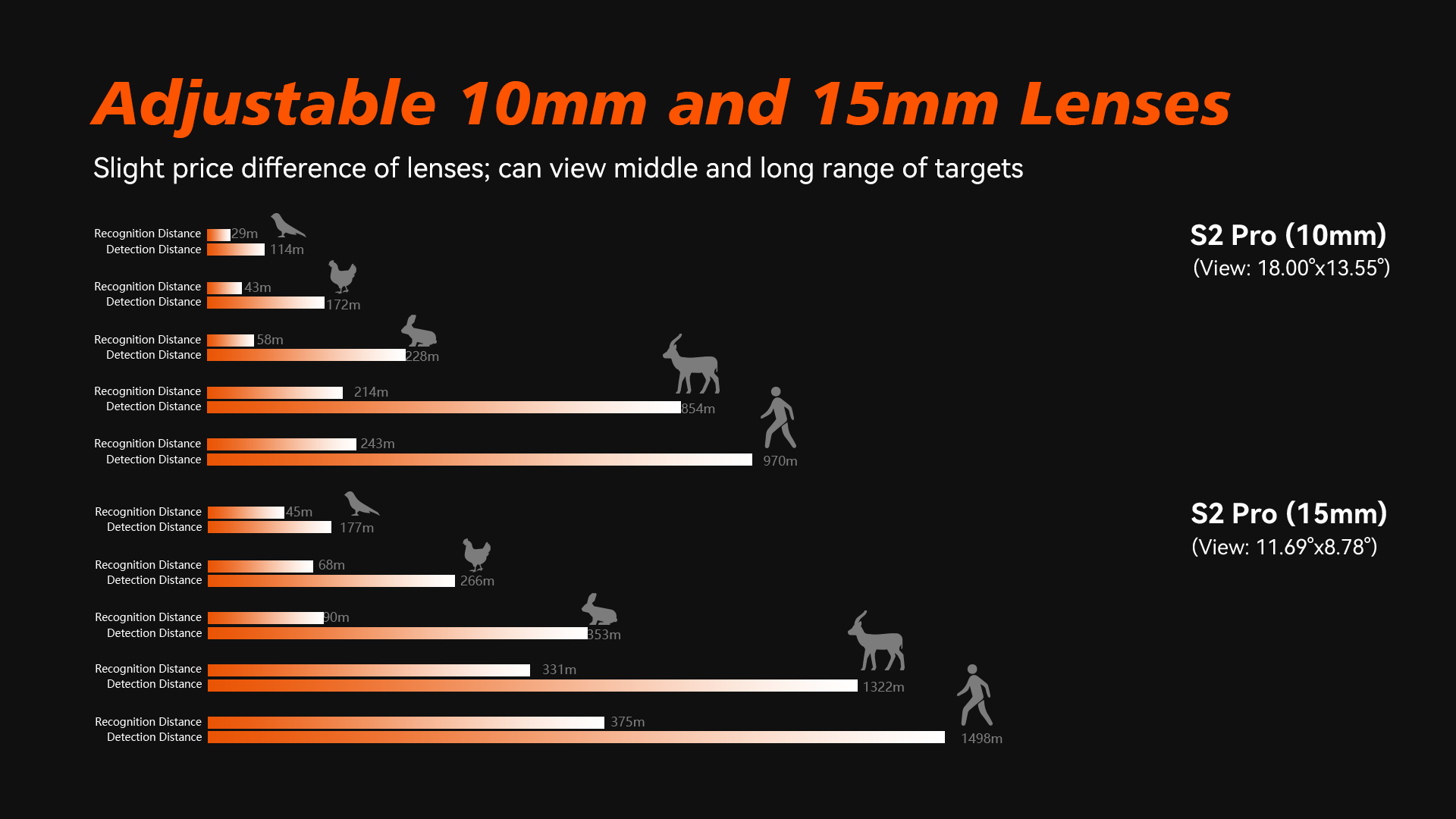

10mm/15mm |
| Aperture
|
F=0.95 |
| Field of view
|
18.00°×13.55° / 11.69°×8.78° |
| Screen refresh rate
|
60Hz |
| Digital zoom
|
1x, 2x, 4x, 8x |
| Display |
1.43-inch AMOLED |
| Scene mode
|
Normal, Outline, City, Forest, Rainforest, Birdwatching |
| Color mode
|
Black hot, White hot, Red hot, Green hot, Iron red hot |
| Hot spot tracking
|
Support |
| Wi-Fi AP/STA
|
Support |
| Standby mode
|
Support |
| Storage 32GB (built-in) |
Built-in 32GB |
| Recording video |
Support |
| Capture snapshot
|
Support |
| CVBS output
|
Support(via USB-C) |
| HDMI output
|
Support(via USB-C) |
| Battery life
|
More than 8 hours(@25°C,Wi-Fi OFF) |
| Battery capacity
|
3.7V 3200mAh |
| Operating temperature
|
-20°C~60°C |
| Protection level
|
IP66 |
| Size
|
170×80×61.5mm |

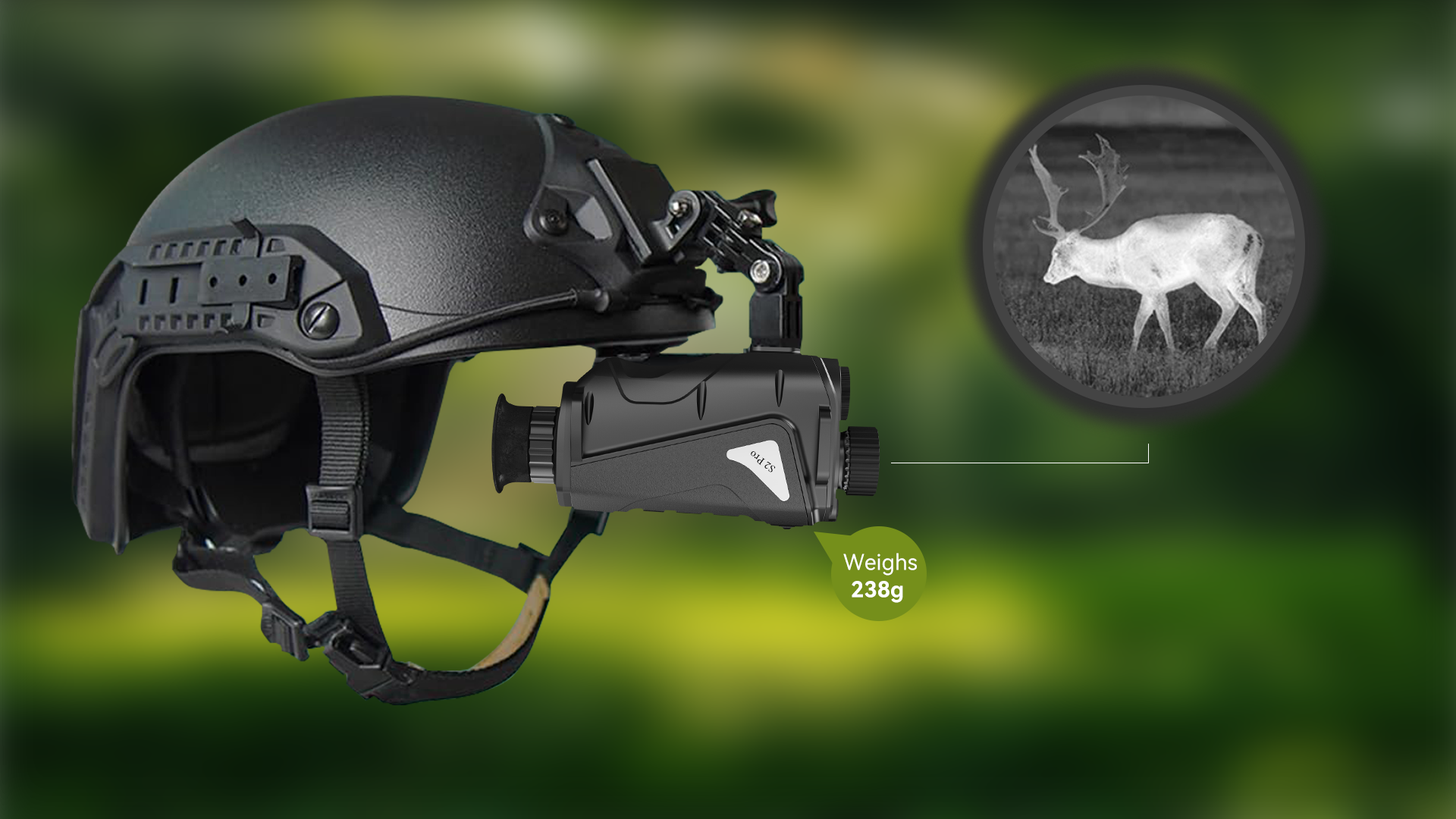

| Weight
|
About 238g |
